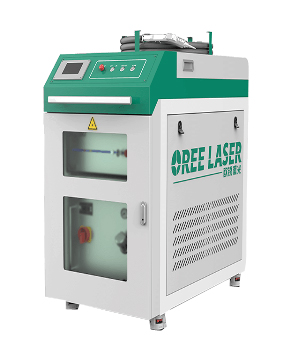

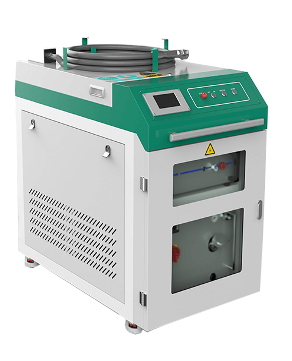

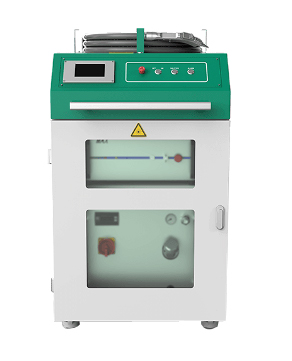

FIBER LASER WELDING MACHINE
FIBER LASER WELDING MACHINE
FIBER LASER WELDING MACHINE


High frequency swing welding head OR-HW
  • • Can be widely used in metal equipment, stainless steel home and other industries complex irregular welding process;Perfect replacement of traditional argon arc welding, electric welding in thin stainless steel plate, iron plate, aluminum plate and other metal materials welding.
  • • Clever interior design and good interactive control system expand the tolerance range and weld width of machined parts,solving the spot tiny disadvantage, and the weld formation is better.
  • • Lightweight shape, body engineering design method, comfortable grip; One hand easy to control, easy to operate.
  • • With multiple security alarms, automatic light lock after moving parts, high security.
  • • Beautiful weld, fast speed, no consumables, no welding mark, no discoloration, no need to polish later.
  • • Can be configured with a variety of Angle nozzle to meet the welding needs of different products.

Water-Cooling Machine
  • • Optimized appearance, smaller body.
  • • Cooling laser source, laser head, dual temperature control.
  • • Low noise fan motor, excellent cooling and condensation effect, stable throttling mechanism, excellent anti-rust treatment.
  • • High performance compressor imported from Europe and America, high EER value, low noise, stable operation.
  • • Adopting high efficiency heat exchanger, low loss of cooling capacity, easy oil return, heat exchange tube will not cause freezing cracks.
  • • With unique modular design, each compressor system is safe and independent.


Technical Data :
  OR-HW500 OR-HW700 OR-HW1000 OR-HW1500
Laser power 500W 700W 1000W 1500W
Operating mode Continuous / Modulation Continuous / Modulation Continuous / Modulation Continuous / Modulation
Laser wavelength 1070NM 1070NM 1070NM 1070NM
Output power stability ±2% ±2% ±2% ±2%
Power Requirements 220V 220V 220V/380V 220V/380V
Machine power ≤5KW ≤6KW ≤7KW ≤9KW
Operating environment temperature range 15-35oC 15-35oC 15-35oC 15-35oC
Working environment humidity range <70% No condensation <70% No condensation <70% No condensation <70% No condensation
Welding thickness range 0.5-0.8MM 0.5-1.2MM 0.5-1.5MM 0.5-3MM
Welding line requirements ≤0.5mm ≤0.5mm ≤0.5mm ≤0.5mm
0-120mm/s 0-120mm/s 0-120mm/s 0-120mm/s 0-120mm/s
Machine size 1190×1100×650mm 1190×1100×650mm 1190×1100×650mm 1190×1100×650mm
