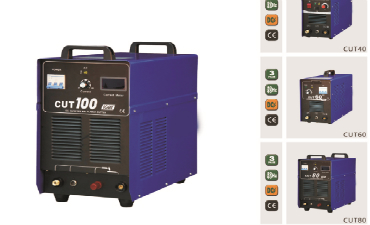

Parameter\Model       CUT40 CUT60 CUT80 CUT100 CUT160
Input Voltage(V)    AC220±15% AC380±15% AC380t15% AC380±15% AC380±15%
Frequency(HZ)           50/60 50/60 50/60 50/60 50/60
Rated Input Current(A) 30 12 18 23.1 44.3
No-load Voltage(V) 230 295 268 268 320
Output Current Range(A) 20-40 20-60 20-80 20-100 20-160
Rated Output Voltage(V) 96 104 112 120 144
Duty Cycle(%) 60 60 60 60 60
No-load Loss(W) 40 60 60 80 100
Efficiency(%) 80 85 85 85 85
Power Factor 0.73 0.93 0.93 0.93 0.93
Insulation Grade F F F F F
Housing Protection Grade IP21 IP21 IP21 IP21 IP21
Arcing Way Contact Contact Transfer Transfer Transfer
Recommended Air Pressure 4-5 4-5 4.5-5.5 4.5-5.5 4.5-5.5
Cutting Thickness(mm) 1-16 1-25 1-25 1-40 1-16
Net Weight(kg) 9 19 25 39 60
Dimension(mm) 371x153x232 480x204x303 515x263x372 560x370x350 670x337x617
PLASMA SOURCE

Base Material Plate Thickness(mm) Arcing Way Current Range(A) Applicable Model
Carbon steel, Stainless steel, Low-alloy steel 0.3-16.0 Contact 20-40 CUT40
1.0-20.0 Contact 20-60 CUT60
1.0-25.0 Transfer 20-80 CUT80
1.0-40.0 Transfer 20-100 CUT100
1.0-60.0 Transfer 20-160 CUT160
Product Speciality

  • Able to cut metal plates in various routes.
  • Outstanding cutting performance.Especially suitable for cutting carbon steel,stainless steel, aluminum and copper.
  • Widely used in iron structure construction, manufacture and automobile maintenance.
  • Improved cooling method for the cutting torch;greatly makes the cutting consumables more endurable.
  • Using air pressure adjusting equipment .Able to operate when the external air pressure is too high.
  • The cutting current is continuously adjustable.Direct and precise.
  • With protection of electro circuit against over current ,over voltage and low-voltage.Safety in operation is assured.
